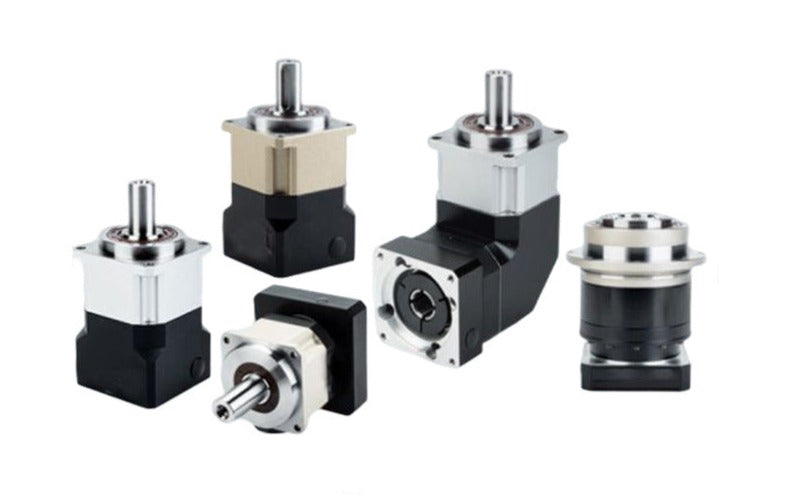

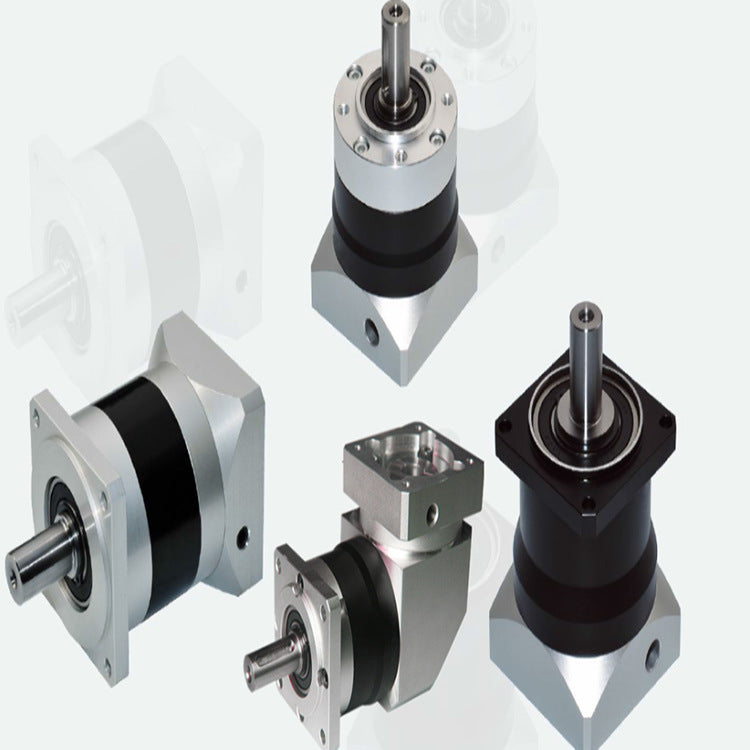

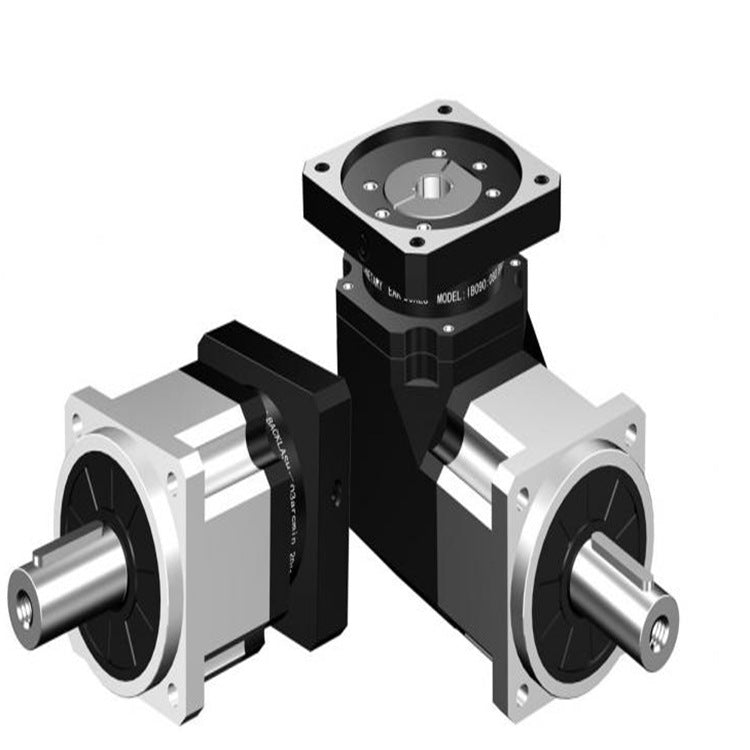

Supply of stepper servo planetary reducer, small right angle planetary reducer, helical gear reduction box

Order number : 4613516

Custom processing : Yes

Item number : 186553118

Category : Gear reducer

Gear type : Helical gear reducer

Installation form : vertical

Layout form : three-ring type

Tooth surface hardness : hard tooth surface

Usage : reducer

Model : 60

Input speed : 500 (rpm)

Rated power : 750 (kw)

Output speed range : 1-500 (rpm)

Allowable torque : 1500 (Nm)

Scope of use : Transmission machinery

Number of levels : 3

Reduction ratio : 500

Specifications : PLF/PLE40, PLF/PLE60, PLF/PLE80, PLF/PLE120A, PLF/PLE160A, PL/PF40, PL/PF60, PL/PF80, PL/PF120, PL/PF160, equipped with 57 step speed ratio 3/ 4/5/7/10, equipped with 57-step second-level speed ratio 12~70, equipped with 57-step third-level speed ratio 100-1000, equipped with 60 servo speed ratio 3/4/5/7/10, equipped with 60 servo Secondary speed ratio 12~70, equipped with 60 servo third-stage speed ratio 100-1000, equipped with 80 servo speed ratio 3/4/5/7/10, equipped with 80 servo second-stage speed ratio 12~70, equipped with 80 servo third-stage speed ratio The step speed ratio is 100~1000, equipped with 86 step speed ratio 3/4/5/7/10, equipped with 86 step second speed ratio 12~70, equipped with 86 step three step speed ratio 100-1000, equipped with 110 Servo/stepper speed ratio 3/4/5/7/10, equipped with 110 Servo/stepper secondary speed ratio 12~70, equipped with 130 Servo/stepper speed ratio 3/4/5/7/10, equipped with 130 Servo/stepper secondary speed ratio 12~70, [right angle] is equipped with 57 step/60 servo speed ratio, [right angle] is equipped with 57 step/60 servo secondary speed ratio, [right angle] is equipped with 86 step/80 servo Speed ​​ratio, [right angle] is equipped with 86 step/80 servo secondary speed ratio, [right angle] is equipped with 110 servo/step speed ratio, [right angle] is equipped with 110 servo/step secondary speed ratio, [right angle] is equipped with 130 servo / Step speed ratio, [right angle] equipped with 130 servo / step secondary speed ratio, ZPB142-L3-P2-60
