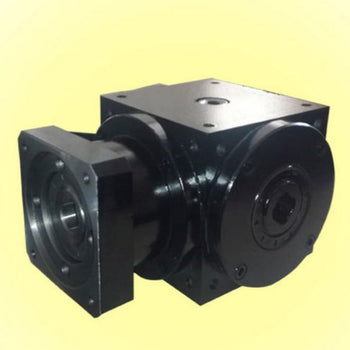

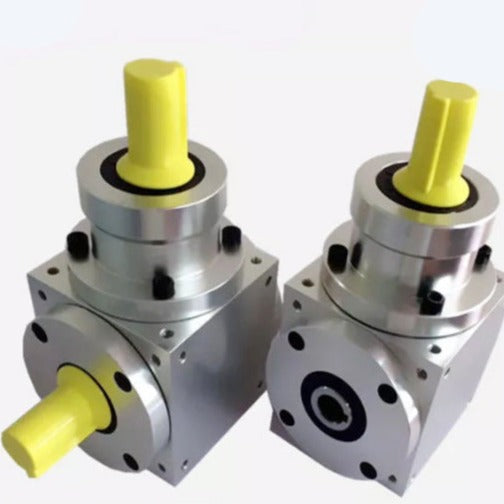

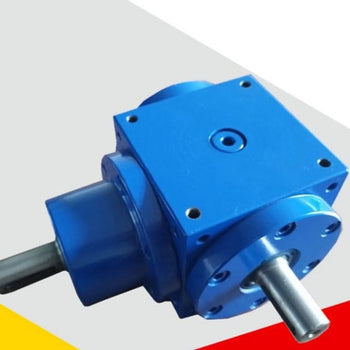

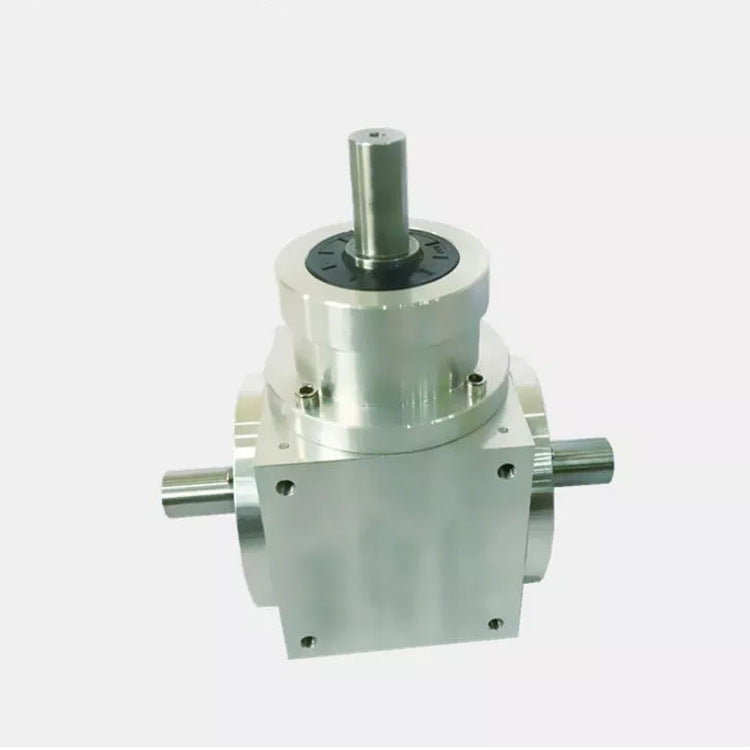

HD09 square steering box, cross 90 degree right angle steering gear, agricultural machinery spiral cone commutator gear box

Order number : 200215

Custom processing : Yes

Item number : 2001108

Category : Gear reducer

Gear type : Helical gear reducer

Installation form : vertical

Layout form : Coaxial

Tooth surface hardness : hard tooth surface

Usage : reducer

Model : HD09/HD11

Input speed : 1450 (rpm)

Rated power : 0.55-180 (kw)

Output speed range : 150-1500 (rpm)

Allowable torque : 3222 (Nm)

Scope of use : Transmission equipment

Number of levels : single level

Reduction ratio : 5

Specification: HD/HDA09-1：1,HD/HDA11,HD/HDA14,HD/HDA17,HD/HDA21,HD/HDA24,HD/HDA28,HDF,HDF14,HDAF09/HDF,HDAF11/HDF11,HDAF14/HDF14,HDAF09/HDF09,HDAF17/HDF17,HDAF21/HDF21,HDAF24/HDF24,HDAF28/HDF28
