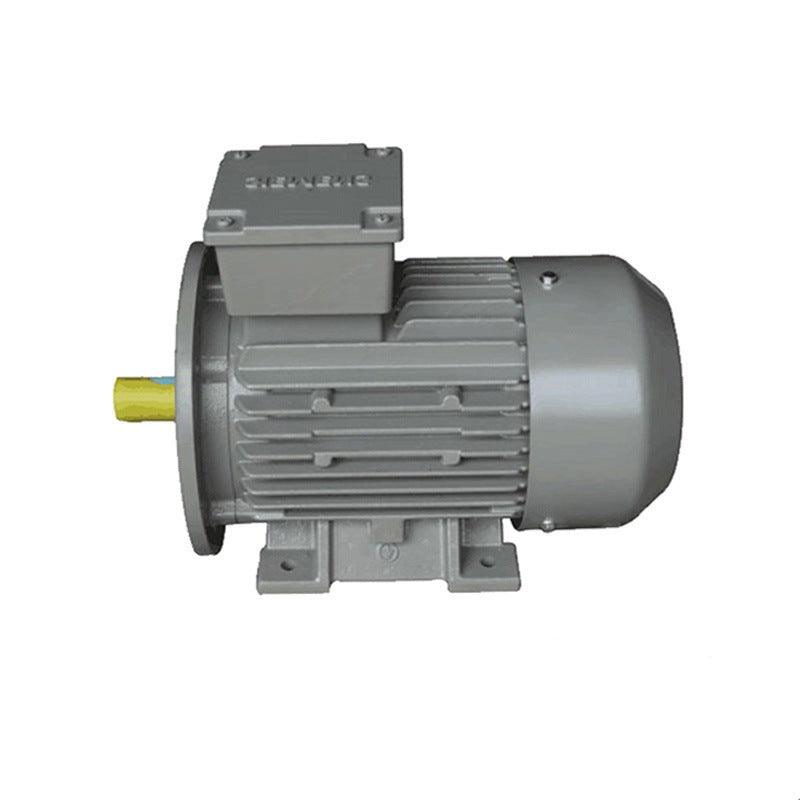

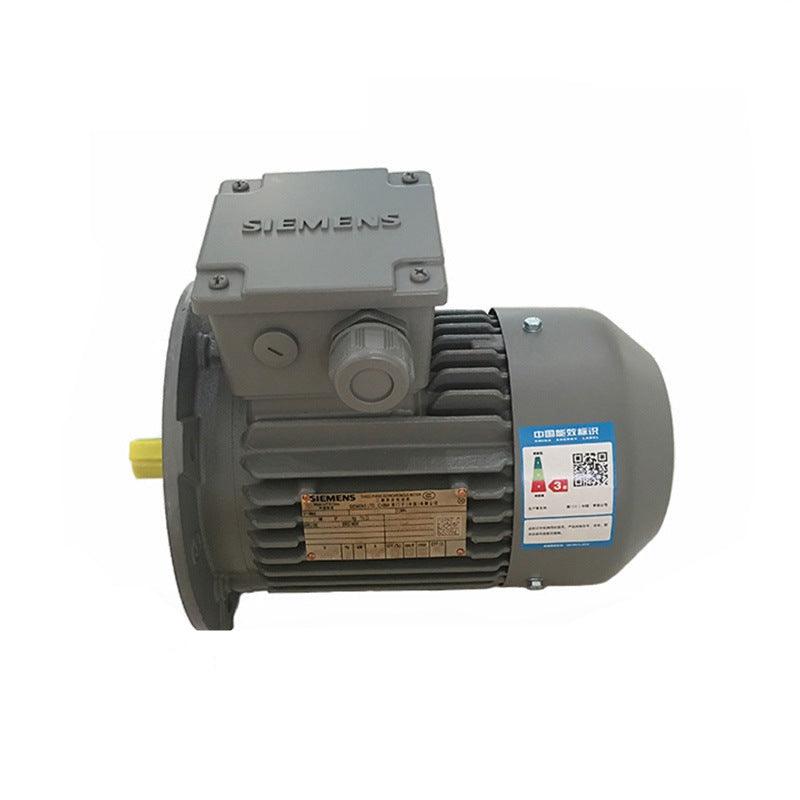

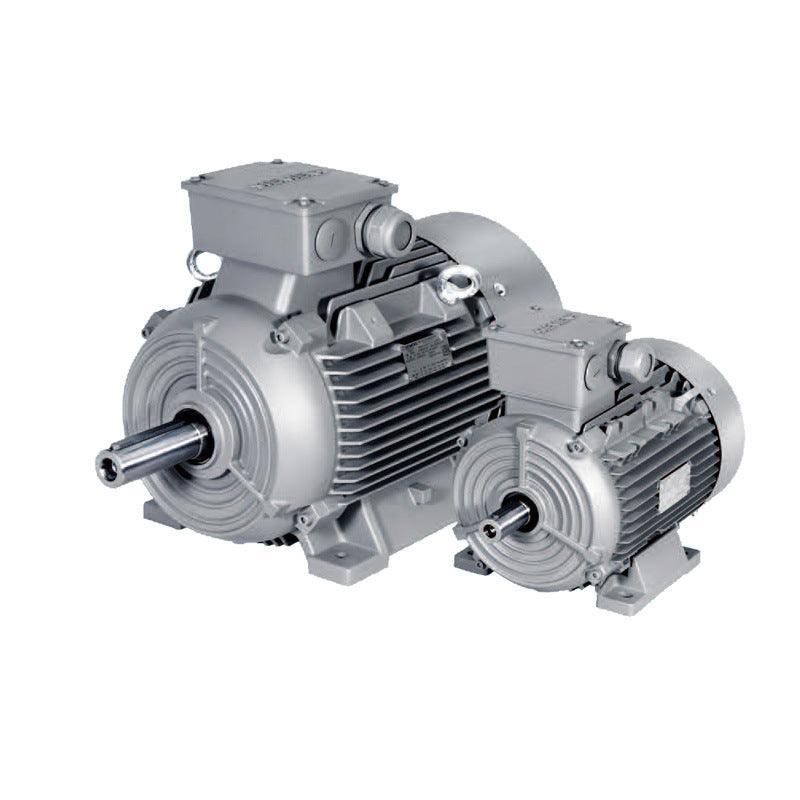

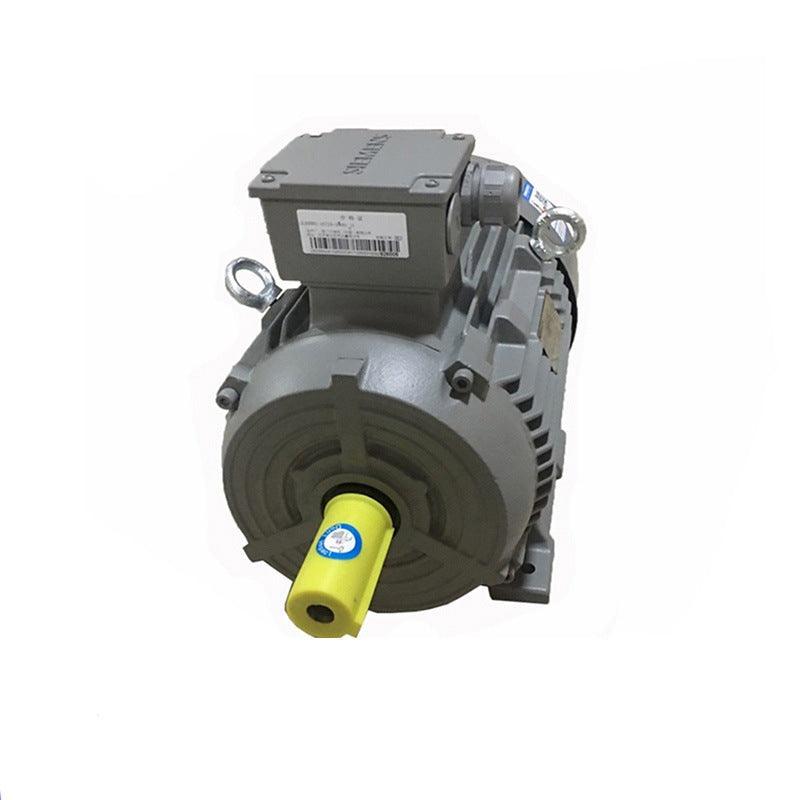

Siemens IE3 motor 0CV3082B 1LE0003-0DB2 0.55KW4P three-phase IP55 F class IC411

order number: 1LE0003-0DB22-1JA4

brand: Siemens

Item No.: 0.55KW*4P*B35

product type: Three-phase asynchronous motor

model: 1LE0003-0DB22-1JA4 0.55KW*4P*B35

number of poles: 4 poles

rated power: 0.55KW

Rated voltage: 380 (V)

Rated speed: 1440 (rpm)

Application range: Various mechanical equipment

3C rated voltage range: AC below 36v

Specification: 1LE0003-0DB2 0.55KW4P

rated current: 1.36

power factor: 0.76

efficiency: 80.8
