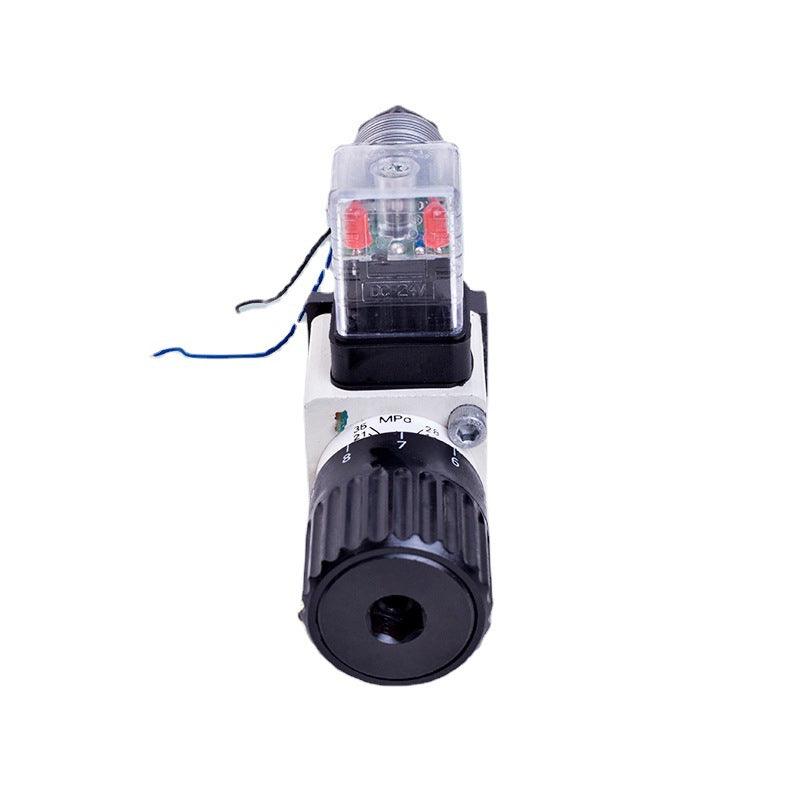

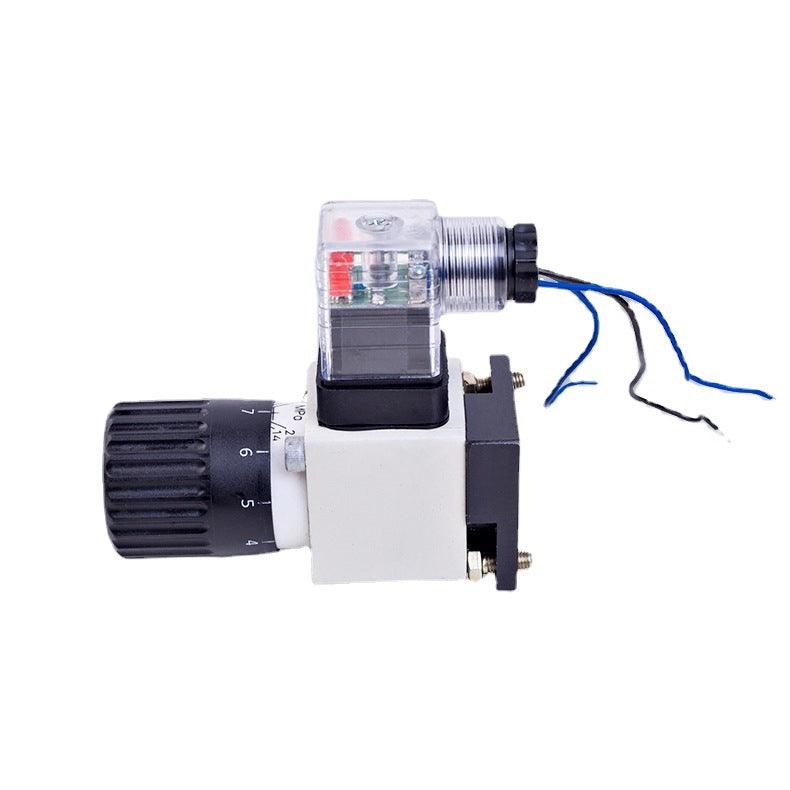

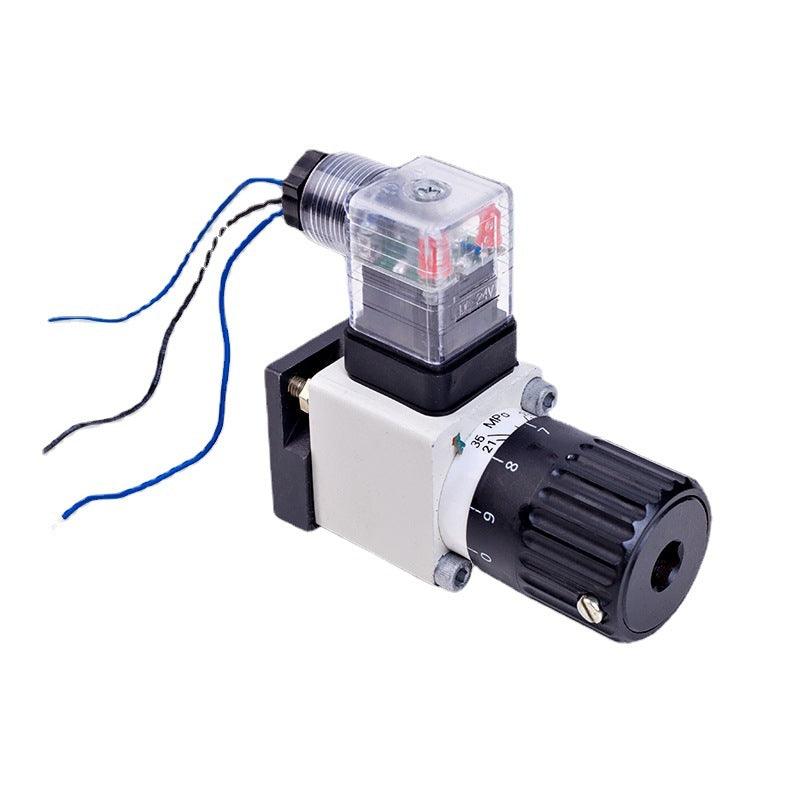

Plunger pressure relay HED40A15B/50Z14L24S hydraulic pressure switch

Serial No..: 001

Custom processing:

Serial No.: 001

type: Pressure relay

Material: steel

Item No.: check valve

Brand : Other

Application: HED4 pressure relay is a plunger pressure relay, used to cut off or connect the circuit according to the pressure

< b>Alternative name: Plunger Pressure Switch

Applicable medium: Oil

Proper temperature: - 30~80（℃）（℃）

Nominal pressure: 35（MPa）

Nominal diameter: 100（mm ) (mm)

Installation modus: baseplate mounting, Pipe installing, as vertical stack

Operating temperature: Normal temperature

type（position）: pressure relay

Connection Type: Various installations method

Parts and Accessories: Whole Valve

Flow direction: Plunger Type Pressure Relay

Driver Type: Electro

Form: Plunger

Pressure environment: High pressure

Main material: steel

Specification: HED40A15B/50Z14L24S,HED40H15B/350Z14L24S,HED40P15B/50Z14L24S,HED40P15B/350Z14,HED40A15B/350Z14L24S
