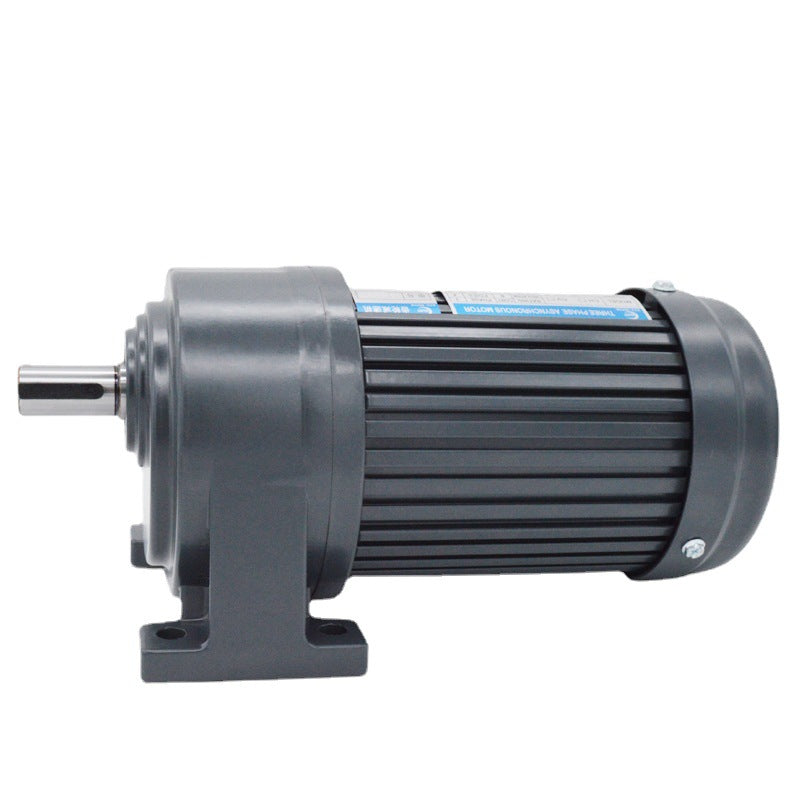

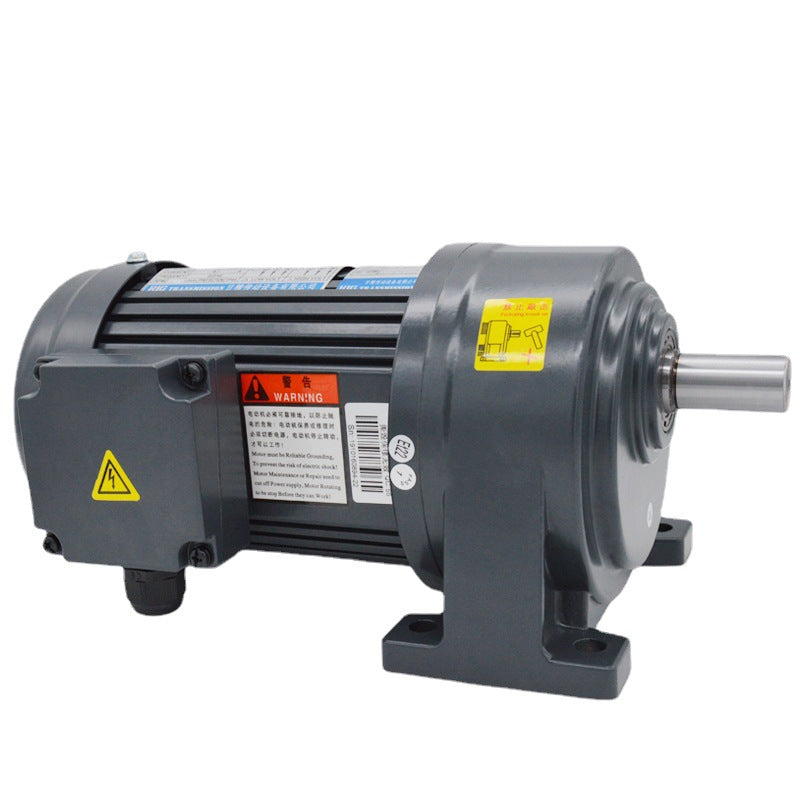

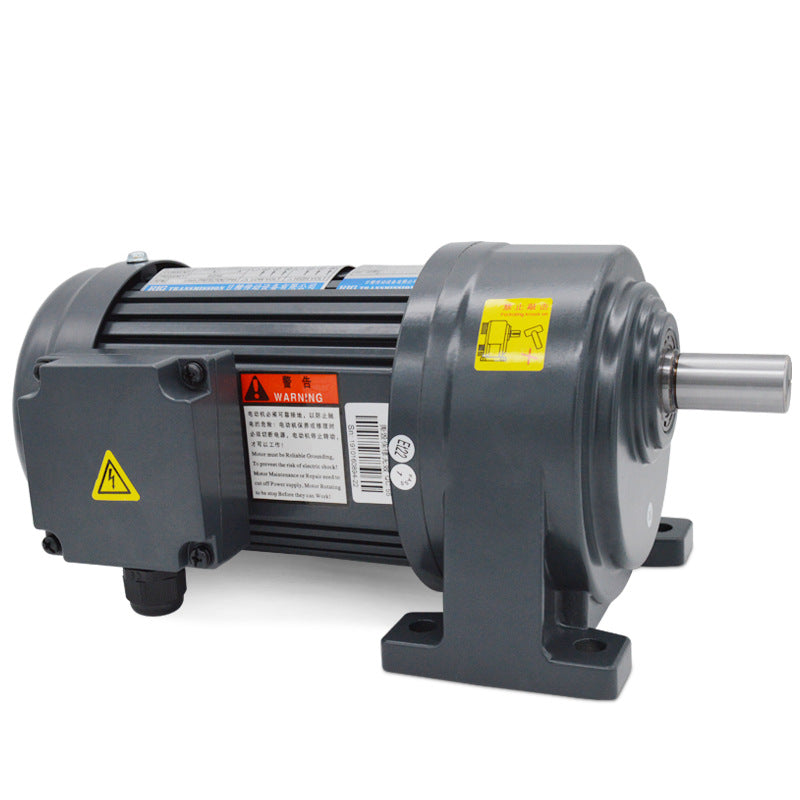

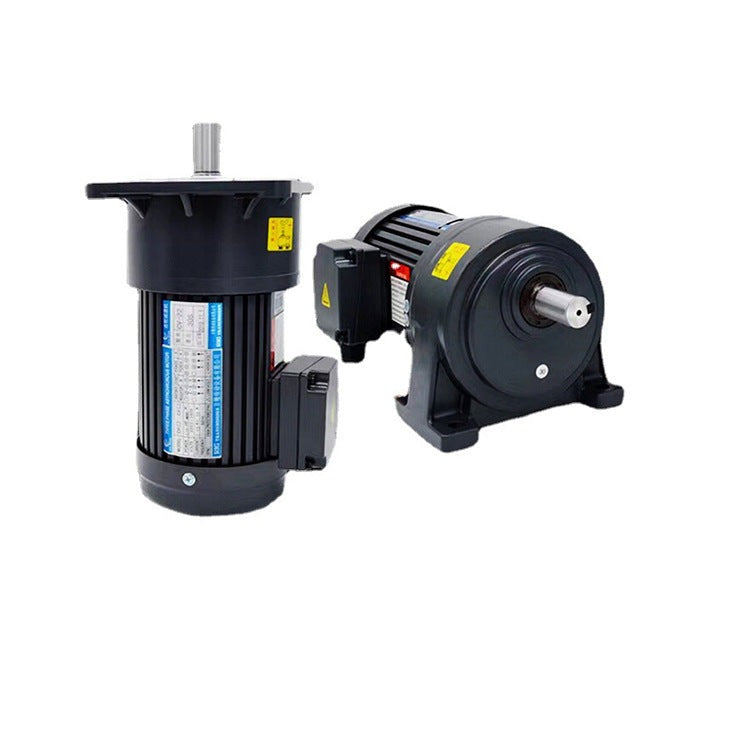

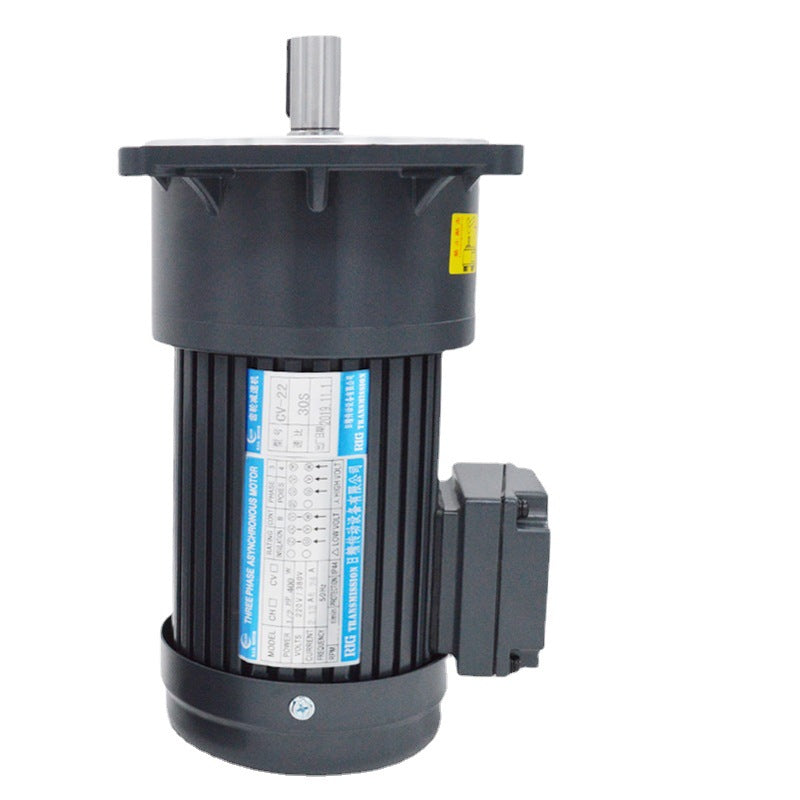

Horizontal GV400W-2200W gear reduction motor AC three-phase single-phase frequency conversion vertical 380/220v motor

Order number: 485632

Custom processing: yes

Item number: 1541521

category: Gear reducer

Gear type: Helical gear reducer

Installation form: Vertical/horizontal

Layout form: other

Tooth surface hardness: Hard tooth surface

use: Reducer

model: CH/CV GH/GV

input speed: 1250(rpm)

rated power: 220(kw)

Output speed range: 1200(rpm)

Allowable torque: 100(Nm)

Scope of use: Transmission machinery

series: Other/other

Reduction ratio: 500

Specification: 100W (3 to 35 speed ratio) 18 axis, 100W (40 to 100 speed ratio) 18 axis, 200W (3 to 20 speed ratio) 18 axis, 200W (25 to 120 speed ratio) 18,200W (3 to 200 speed ratio) 22 axes, 200W (speed ratio from 5 to 200) 28 axes, 400W (speed ratio from 3 to 30) 22 axes, 400W (speed ratio from 35 to 200) 22 axes, 400W (speed ratio from 3 to 200) 28 axes, 750W (3 to 120 speed ratio) 22 axes, 750W (3 to 25 speed ratios) 28 axes, 750W (30 to 200 speed ratios) 28 axes, 750W (4 to 200 speed ratios) 32 axes, 1100W (3 to 200 speed ratios) 22 , 1500W (3 to 120 speed ratio) 28 axes, 1500W (3 to 25 speed ratio) 32 axes, 1500W (30 to 120 speed ratio) 32, 2200W (3 to 200 speed ratio) 32 axes, 2200W (3 to 20 speeds) Ratio) 40 axle, 2200W (25 to 200 speed ratio) 40, 3700W (3 to 20 speed ratio) 40, 3700W (25 to 200 speed ratio), 3700W (3 to 200 speed ratio) 5. If brake or single phase is required Please contact customer service, CH18-100-(3~50)S, CH22-200-(13~30)S, CH28-750-(3~25)S, CH32-750-(30~60)S, CH32- 1500-(3~10)SB,CH40-1500-(15~25)SB,CH40-2200-(3~10)SB,CH40-2200-(15~25)SB,CH40-3700-(3~10 )SZ,CH50-3700-(3~100)SZ,CV18-100-(3~50)S,CV22-200-(13~30)S,CV28-750-(3~25)S,CV32-750 -(30~60)S,CV32-1500-(3~10)SB,CV40-1500-(15~25)SB,CV40-2200-(3~10)SB,CV40-2200-(15~25) SB,CV40-3700-(3~10)SZ,CV50-3700-(3~100)SZ
