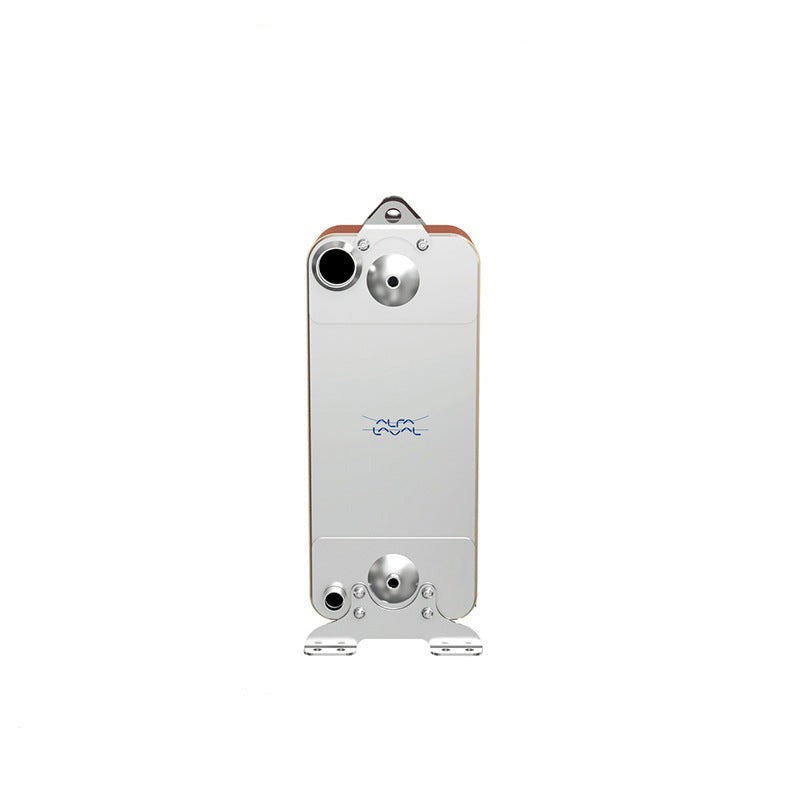

brazed plate heat exchanger air conditioning refrigeration chiller heat pump condensing evaporator AC500 series

model: AC500EQ

Order number: AC500EQ

Custom processing: no

Item number: AC500EQ

type: Plate heat exchanger

Flow channel cross-sectional area: See details (m2)

weight: 12.8+0.84*n（kg）

use: Air conditioning and refrigeration, condensation and evaporation, cascade systems, evaporators, condensers, air conditioning heat pumps

Heat transfer method: Partitioning wall heat exchanger

Specification: AC500EQ-224H-F,AC500EQ-104H-F,AC500EQ-136H-F,AC-500EQ-138H-F,TBACEQ-250H-F(30751 3312 1)

maximum flow rate: 14 m3/h

Number of plates: 4~124

Connection method: External thread, internal thread, soldering, welding
