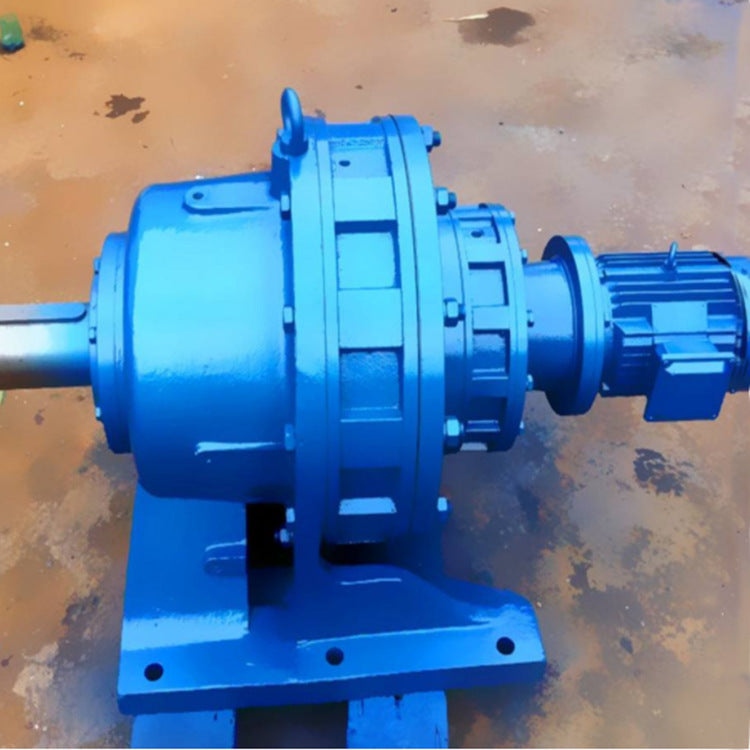

BLD/XWD horizontal vertical single-stage double-stage planetary cycloid pinwheel reducer transmission manufacturer supplies

Order number : 20180722

Custom processing : Yes

Item number : 0001006

Category : Cycloidal pinwheel reducer

Gear type : Pin wheel reducer

Installation form : horizontal

Layout form : cycloid

Tooth surface hardness : cycloidal pinwheel

Usage : reducer

Model : XLD/BLD

Input speed : 1000 (rpm)

Rated power : 4 (kw)

Output speed range : 23 (rpm)

Allowable torque : according to customer requirements (Nm)

Scope of use : mechanical transmission

Level : Level 3

Reduction ratio : 187

Specifications : B0/X2 does not include motor, B0/X2-0.75KW motor, B1/XW-1.1KW motor, B1/X3-1.5KW motor, B1/X3-2.2KW motor, B2/X4-2.2KW motor, B2 /X4-3KW motor, B2/X4-4KW motor, B3/X5-4KW motor, B3/X5-5.5kw motor, B3/X5-7.5KW motor, B4/X6/X7-5.5KW motor, B4/X6/ X7-7.5KW motor, B4/X6X7-11KW motor, B6/X9-15KW, B5/X8-11KW, B5/X8-7.5KW, B7/X10-22KW, Shaft diameter 100mm, XWD8/XLD8 output shaft diameter 90mm, XWD7/XLD7 output shaft diameter 80mm, XWD6/XLD6 output shaft diameter 65mm, XWD5/XLD5 output shaft diameter 55mm, XWD4/XLD4 output shaft diameter 45mm, XWD3/XLD3 output shaft diameter 35mm, XWD2/XLD2 output shaft diameter 25mm, BWD7/BLD7 output shaft diameter 110mm, BWD6/BLD6 output shaft diameter 100mm, BWD5/BLD5 output shaft diameter 90mm, BWD4/BLD4 output shaft diameter 70mm, BWD3/BLD3 output shaft diameter 55mm, BWD2/BLD2 output shaft diameter is 45mm, BWD1/BLD1 output shaft diameter is 35mm, BWD0/BLD0 output shaft diameter is 30mm
